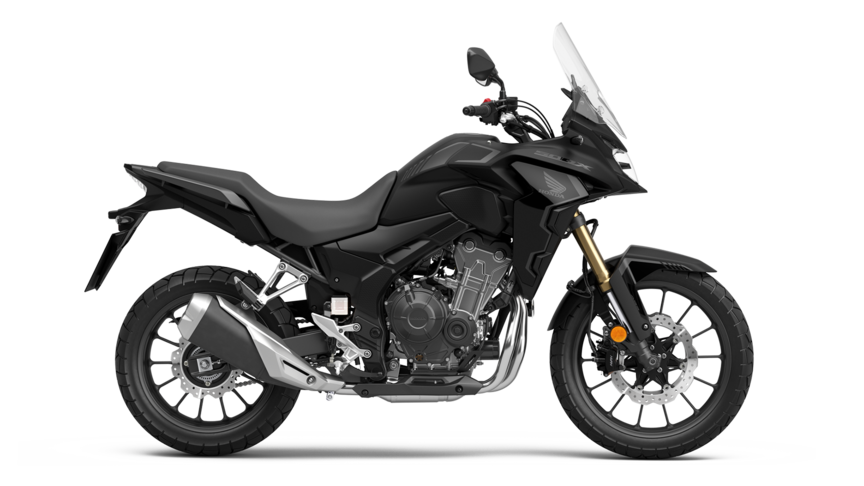

CB500X 2022
CB500X 2022 key features
CB500X 2022 Specifications ▲
Show specifications
- Engine
Bore × Stroke (mm) 67mm x 66.8mm Carburation PGM-FI electronic fuel injection Compression Ratio 10.7:1 Engine Displacement (cc) 471cc Engine Type Liquid-cooled 4-stroke DOHC parallel twin Max. Power Output 35kW / 8600rpm Max. Torque 43Nm / 6500 rpm Starter Electric Throttle Bore 34 C02 Emissions (g/km) 80 - Wheels
ABS System 2 channel Brakes Front Dual 296 mm x 4 mm disc with Nissin axial-mount two piston calipers Brakes Rear Single 240 mm x 5 mm disc with single piston caliper Suspension Front Showa 41mm SFF-BP USD forks Suspension Rear Prolink mono with 5 stage pre-load adjuster, Steel hollow cross swingarm Tyres Front On-Off Pattern Tyre Size Front 110/80R19M/C (59H) Tyre Size Rear 160/60R17M/C (69H) Tyres Rear On-Off Pattern Wheels Front Multi-Spoke Cast Aluminium Wheels Rear Multi-Spoke Cast Aluminium - Dimensions and Weights
Battery Capacity (VAh) 12v 7.4Ah Caster Angle 27.5° Dimensions (L×W×H) (mm) 2,155mmX830mmX1,410mm Frame type Steel diamond Fuel Tank Capacity (Litres) 17.7 L Fuel Consumption 28.6km/L / 3.5l/100km Ground Clearance (mm) 180mm Kerb Weight (kg) 199kg Seat Height (mm) 830mm Trail (mm) 108mm Wheelbase (mm) 1,445mm - Transmission
Clutch Wet multiplate, Assisted slipper clutch Final Drive Chain Gearbox 6-speed - Instruments and Electrics
Headlights LED Instruments Digital Speedometer, Digital Bar Graph Tachometer, Dual Trip Meters, Digital Fuel Level Gauge & Fuel Consumption Gauge, Digital Clock, Water Temp, Gear position indicator Tail Light LED Emergency Stop Signal Yes Security HISS
-
